Araknis Static Route

This step by step guide is designed for Araknis Routers. The screen shots below are based on from the AN-310 Router.

​A static route allows devices to communicate on multiple networks. In most cases this is so you can use features like CEC, RS232, IR, Video wall and more with Just Add Power and other video systems.

Log into your router

  1. Click Advanced
  2. Click Static Route


Scroll down to Static Route Table and click the button that says Add Static Route



Using your BlackWire Programming sheet or JAD Config output locate the following information:

  • J+P Network IP Scheme
  • J+P Network Subnet Mask
  • AVIP Switch IP

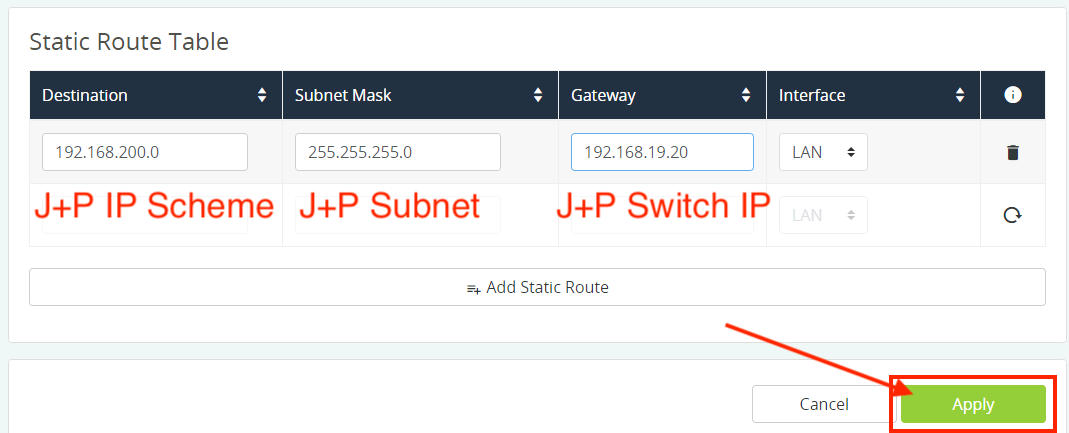

This is an example of a J+P system on the 192.168.200.0 IP scheme and the Luxul switch on 192.168.19.20 IP address. Your system will be different.

Once you fill in the information click Apply

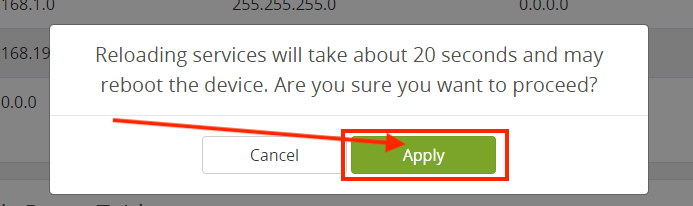

A pop up will appear asking you to apply the changes and reboot the router. Click Apply



Once the router is finished loading confirm your settings are still there by going to Advanced – Static Route then scrolling down and viewing the information.

To test that your static route is working type in the IP address of a Just Add Power device and make sure the devices web page loads.
